AC VOLTAGE REGULATOR HEAVY DUTY UNIVERSAL | RM03800
97-0048
Regular price
$26.39
Save $-26.39
For CMS Table 138632

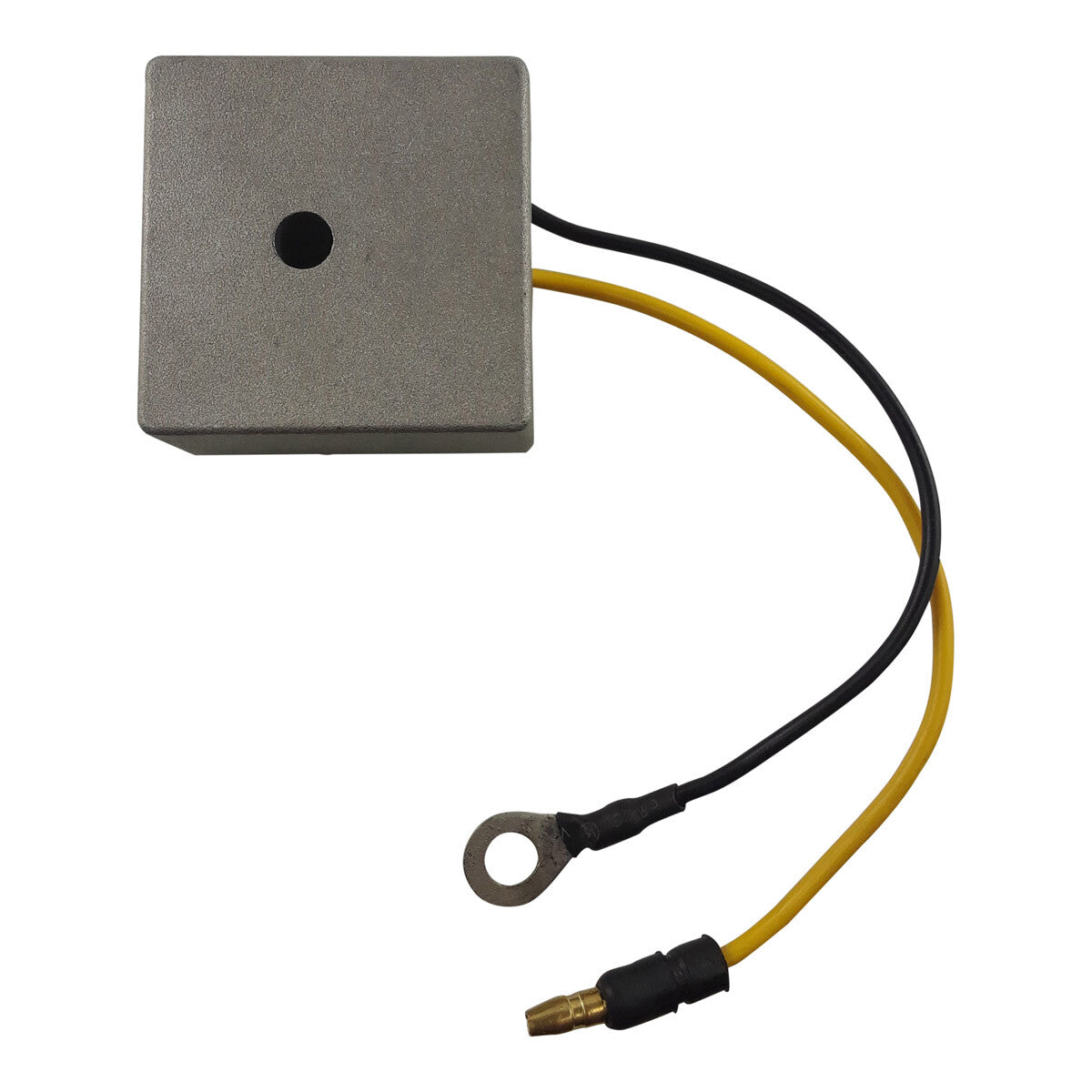

Mosfet Voltage Rectifier Regulator
STOP BURNING YOUR REGULATOR RECTIFIER ! It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
We have even included the opposite connector (main harness side) when available as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All shipped products are tested
ALWAYS REFER TO RM-STATOR WEBSITE FOR FURTHER NOTES ON FITMENT.
For CMS Table 138633
TITLE: Mosfet/Series CNC and REVOLT Regulators
SUB-TITLE: Improved reliability over OEM
MOSFET REGULATOR CNC Series Regulators
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.
Mosfet runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
We have even included the opposite connector (main harness side) when available as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
ALWAYS REFER TO RM-STATOR WEBSITE FOR FURTHER NOTES ON FITMENT.
REVOLT Voltage Regulator
Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!
RUNS 50% COOLER THAN OEM 2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market
SOLVES THE MAJOR CAUSE OF FAILURE 85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.
DISSIPATE HEAT 45% FASTER THAN OEM Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.
PROUDLY MADE IN NORTH AMERICA REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.
LIFETIME WARRANTY REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.
For CMS Table 135660
OEM Replacement Aftermarket Voltage Regulator
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
We have even included the opposite connector (main harness side) when available as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
No assembly required
Higher grade of electric components.
Improved heat sink and charging capabilities
The quality exceeds the OEM equipment
All products shipped are tested.
We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
ALWAYS REFER TO RM-STATOR WEBSITE FOR FURTHER NOTES ON FITMENT.
