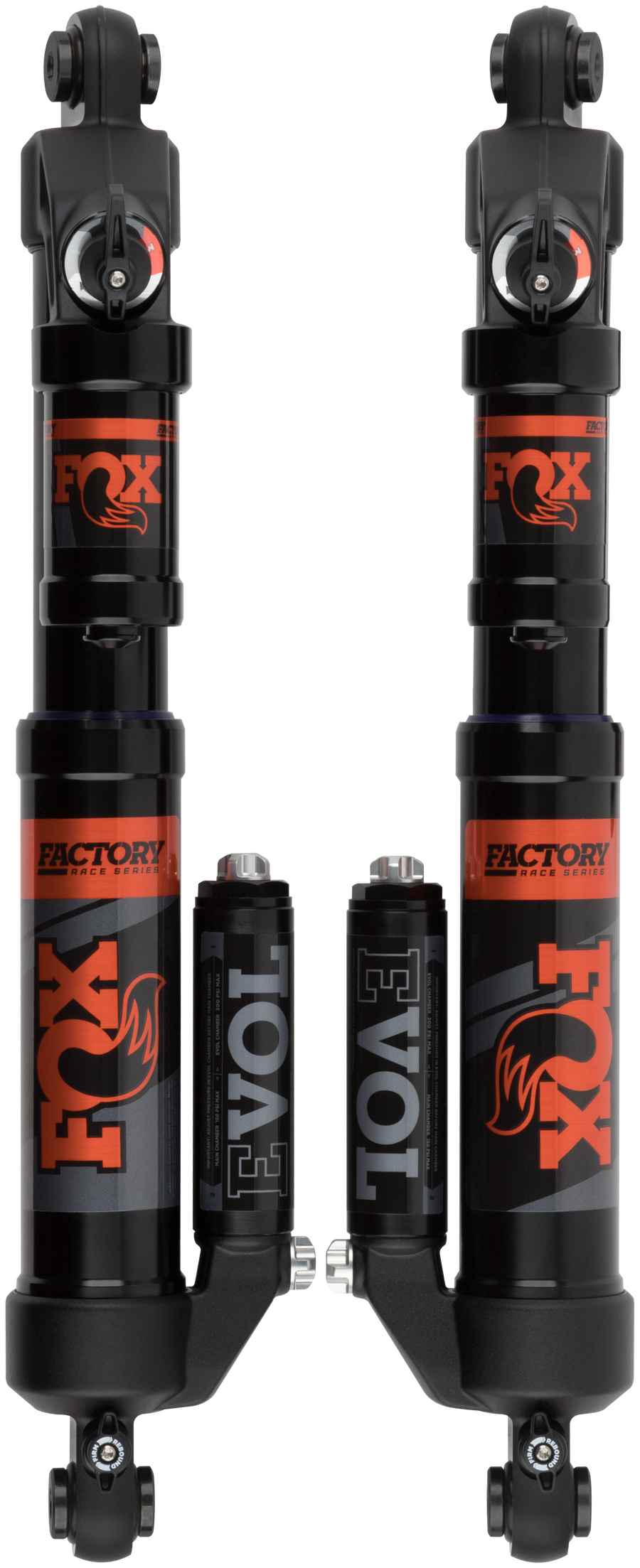

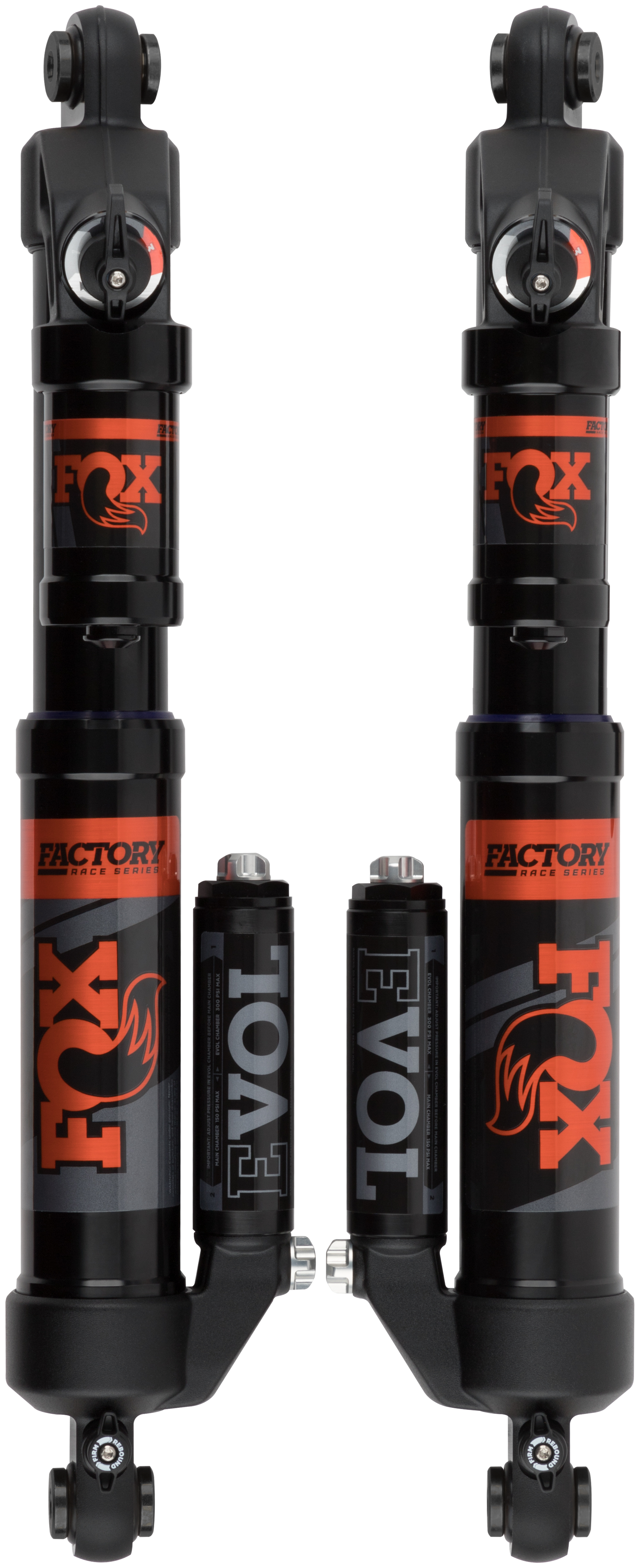

FLOAT 3 EVOL QS3-R LW SKI SHOCKS S-D

Fox's Next-Gen lightweight shocks feature latest technology for reducing weight and ride improvements.  All kits will feature Fox's QS system allowing rider to easily adjust shocks for different riding conditions.  Ski shocks sold per pair, rear track kits will include front and rear track shocks.

• All shocks can be completely rebuilt and re-valved for custom calibration

Fox engineers focused on 4 key objectives:

1. Less weight + less fatigue = more riding
2. Position sensitive damping = plush ride w/ bottomless feel
3. Better handling/ more nimble
4. QS3 quick switch adjustable settings

To accommodate these objectives, Fox focused on these key components:

Aluminum Mounting Hardware
● Significant weight savings over previous steel reducers
● Incorporated reducers – no more reducers dropping on the garage floor during installation
Position-Sensitive Damping
● Internal grooves placed in the shock’s ride zone improve small bump comfort
● Small top-out zone reduces harsh top-outs
● Bottom-out zone dramatically increases damping force in the last 30% of travel
● Black Type III hard-anodized aluminum protects the bodies from nicks and scratches and gives
seals a smooth, consistent surface to ride on

1.5"-Diameter Reservoir
● Optimized inside diameter and wall thickness for maximum weight savings
Lightweight Springs
●95-lb per inch springs weigh 0.78 lb
● Optimized high-pitch springs were designed specifically for their respective application
● Spring material retains the correct spring rate with less coils, while at the
same time maintaining durability under harsh use

Weight Savings Compared to M.Y. 2020 QS Models

• Coil Over shocks reduced by .75lbs each (ski shocks) over non LW Series
• Coil Over shocks 21% lighter than non LW Series
• Float (air) shocks reduced by .63lbs each (ski shocks) over non LW Series
• Float shocks shocks 15% lighter making them the the lightest available
