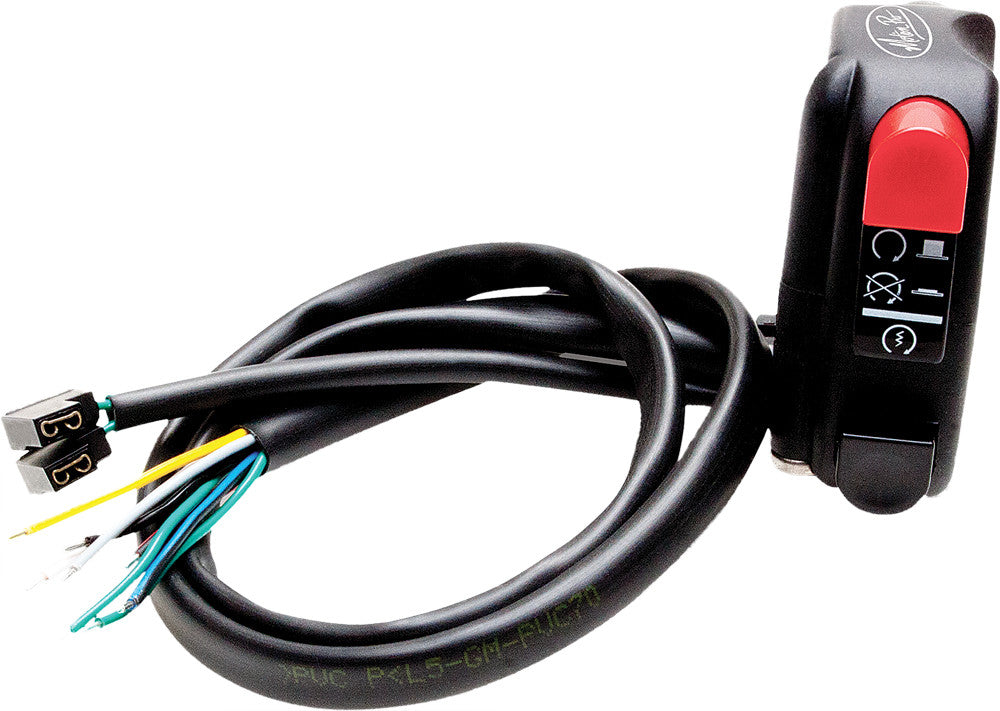

REV2 STOP/START SWITCH

Rev3 Throttle Kits

• The new 3rd generation Motion Pro Revolver variable rate throttle system is here!
• Innovative reel changing system lets you tailor the throttle rate to your preference and riding conditions
• 5 different reels provide perfect throttle response for any condition. Use smaller reels for slower throttle rate and larger reels for faster throttle rate. Included cam reel provides progressive throttle response preferred by some riders
• Slim REV3™ throttle housing allows more room for lever clearance and adjustment to throttle housing position
• Improved throttle stop provides greater strength and durability - Snap together elbows makes it even easier to install and change reels
• Cable boot keeps dirt and dust out for reliable and smooth operation
• REV3™ off-road kits are compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
• Billet aluminum inline cable adjusters ease installation and adjustment
• Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight
• Upper section of cables use 6 mm housing to provide solid support of adjusters
• Simple to install and maintain
• Patented

Kit includes:

• REV3™ throttle assembly with throttle tube (REV3™ off-road kits include the unbreakable Titan Throttle Tube™)
• Motion Pro REV3™ black vinyl cables specifically designed for your bike
• REV3™ sportbike kits include Motion Pro RoadControl™ grips (01-1131) and REV3™ off-road kits include Motion Pro DirtControl™ II grips (01-2816)
• Four interchangeable round reels: 35mm, 40 mm, 45 mm, 50 mm
• Progressive cam reel - Sportbike kits include road race profile cam reel (orange) and off-road kits include off-road profile cam reel (gray)

Notes:

* Closed course race application only, must use 7/8" handlebars.

** For use with stock throttle bodies/carburetors. Does not include starter/kill switch assembly or wiring, ignition/starter switch required (not included). Order 70-11980 switch assembly unless specific switch is listed for the application.

# For use with stock throttle bodies, stock reel is 33.4mm. The stock throttle housing has an on/off switch, mode switch and starter button. The 70-11980 acc. switch only has an on/off switch and starter button. Contact Motion Pro for a complete list of modifications needed.

† For use with stock throttle bodies, fits BMW S1000RR produced from 09/08 thru 03/12. The Rev2 kit may not be a direct bolt on, contact Motion Pro for a complete list of modifications needed.

‡ Rev2 Kits have cables specifically designed for fitment on specific models, but the Rev2 throttle itself is not model specific. Therefore, in some situations, the Rev2 kit may not be a direct bolt on installation due to space limitations on the stock handlebar. In some installations, it may be necessary to move other control components on the stock handlebar, shorten the Rev2 throttle tube and grip, install longer after market handlebars, or possibly all of the above. It is up to the end user to determine the best method for fitment on their motorcycle, and ensure that the Rev2 kit is installed properly and with the correct clearances for safe operation.

§ 70-22765 Rev2 throttle kit features throttle cable set 70-21270 that is 3 inches longer than throttle cable 70-21269 included in Rev2 throttle kit 70-21764.
