RX-2NR 16 000 RPM GUAGE WHITE PANEL

Performs the following functions (unless noted in specific features of each gauge):

• Speedometer w/top speed record (MPH or Km/H)
• Odometer w/dual trip meter
• Tachometer
• Programmable shift light
• Water and oil temperature
• Fuel level
• Clock
• Indicator lights for neutral, high beam, oil pressure, turn indicator, and shift RPM
• Includes gauge bracket, speed sensor, speed sensor bracket, and water/oil temperature sensors (1/8” pipe thread)
• Can be used for cylinder head temperature (order optional sending unit)
• Order water temperature sensor hose adapter separately if needed

RX-2N is available in black panel w/blue backlight in RPM range of either 0-10,000 or 0-19,000.

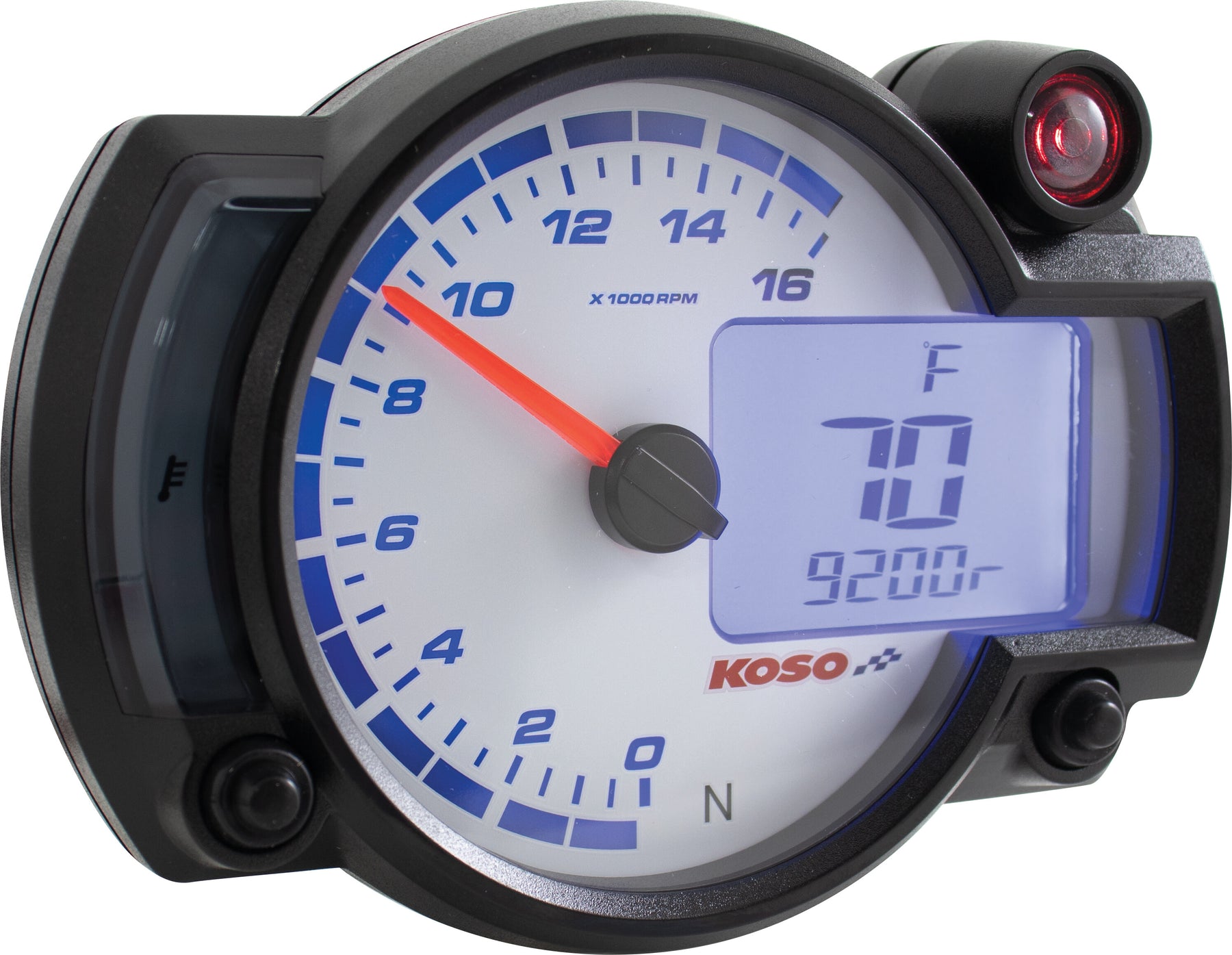

RX-2NR is available in white panel w/white backlight, this is a tachometer w/shift light only (no speedometer, clock, fuel gauge) with a single temperature gauge/temperature warning.

RX-3 is available in black panel with multi-colored backlight colors (white, red, orange, green, blue)

RX-3S is available in black panel with multi-colored backlight colors (white, blue, orange, yellow, green)

DL-03SR is available in either black or silver bezel and includes all functions listed above (except shift light and water/oil temperature), also includes a voltage meter. Measures 72mm in diameter, 33mm overall depth.

TNT-05 D80 is available in black panel with multi-colored backlight colors (white, yellow, orange, red, purple, blue, light blue, green)
