V-PLOW EXTENSION | 106280

10-6280

$158.95

Save $-158.95
10 in stock

KFI 80" Pro-V UTV Plow

  • Available with Hydraulic Angling Kit, or with Manual Extensions for angling each wing. A Manual Pro-V Plow System can be upgraded to a Hydraulic Actuators by purchasing (2x) ACT203 and (2x) 105940 at a later time.
  • For information about how to order please refer to the PDF attachment.
  • It comes with everything you need to install besides the model specific plow mount.
  • Uses a winch to raise and lower the blade.

Pro-V Specifications:

  • 80" Wide When Straight
  • 75" Wide in V-Shape
  • 72" Wide in Scoop
  • 21” Vertical Blade Face Height with Approximate 28” Height w/ Snow Flap
  • 2" Integrated Height Adjustment (-1" to +1”)
  • Steel Frame Design with Replaceable Poly Face
  • Dual Curvature Face for Supreme Snow Moving
  • Heavy Duty 3" Diameter, Grade-50 Steel Skid Plates with Bolt-On Brackets
  • Tripping Wear Bar
  • Metal Bead Blasted, Then Powder Coated Black for Supreme Durability
  • Weighs ~290lbs (~70-170lbs Lighter Than the Competition)
  • MADE IN USA
  • 2-Year Limited Warranty

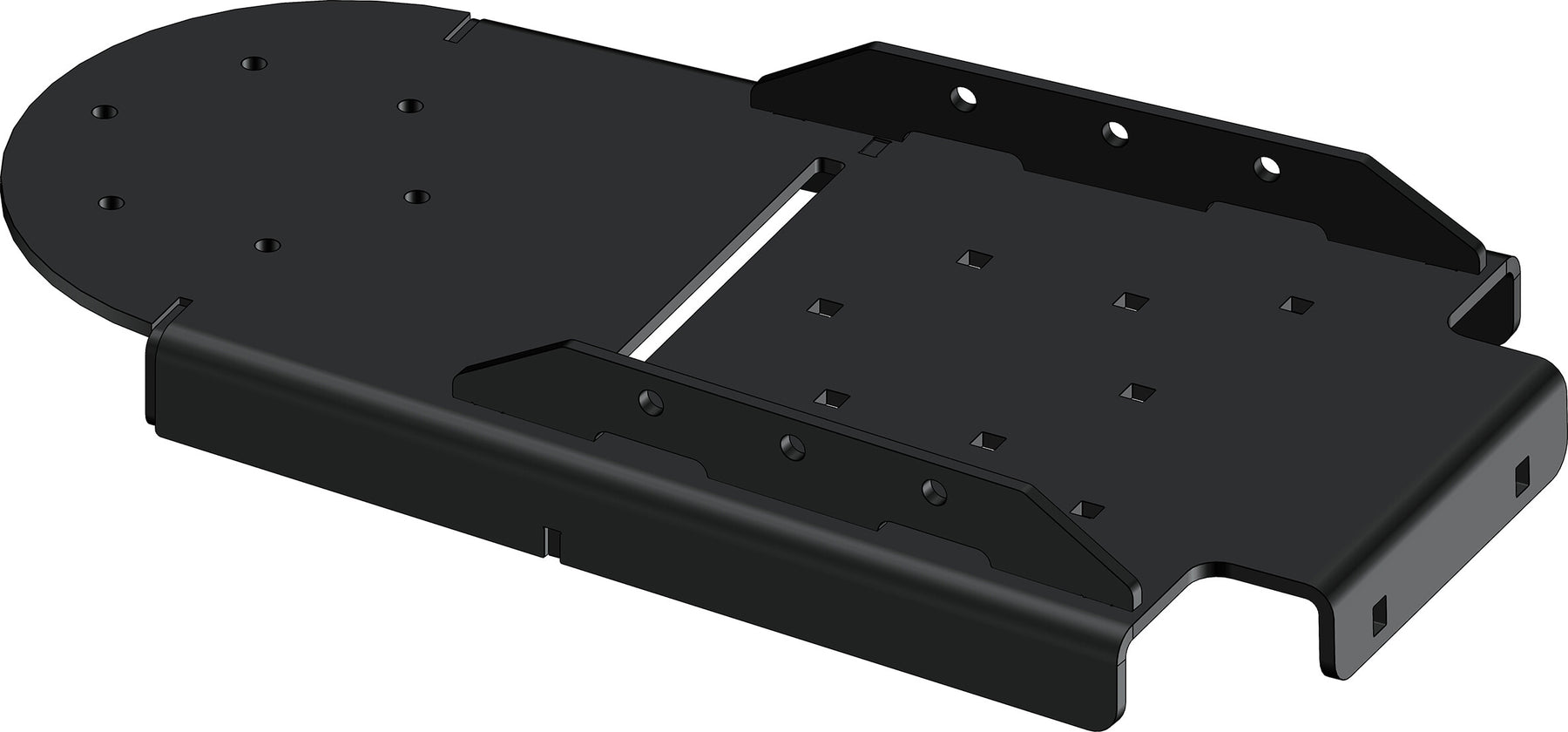

UTV Pro-V Plow Tube Track Extension

  • Extends Pro-V UTV blade 12.25"
  • Shot blasted before powder coating
  • Powder coated TOUGH - Black
  • Constructed of heavy duty 1/4" grade 50 steel



Complete Control V- Plow Handheld Remote Kit

The KFI Pro-V Hand Remote allows you to have control over both your winch and V-Plow wings. Independently control each wing, or simultaneously control both wings with one button, by holding left, right, wings out, or wings in.

Remote Specifications:

  • Designed for use with KFI Pro-V Plow
  • Includes the KFI All Control Hand Remote # 10-6639
  • Includes the Hand Remote Socket that mounts to your Dash # 10-6637
  • "Requires" the V-Plow Wire Harness # 10-6638 (Not Included)
  • Controls the Winch for Raising and Lowering the Plow System
  • Controls a 2 Hydraulic Actuators for Angling a V-Plow
  • Can Be Used in Conjunction with the V-Plow system with the Dual Dash Rockers Switches (# 10-6180-AP)
  • "Blue" Backlit Buttons When Plugged In
  • "ON/OFF" Switch on Top of Remote to Prevent Accidental Operation While Plugged In
  • Threaded Connection to Eliminate Accidental Disconnection
  • Dash Clip Included for Storing on a flat surface
  • Will work with most standard UTV Winches
  • Will most likely work with other brand V-Plows that have two independent Actuators
