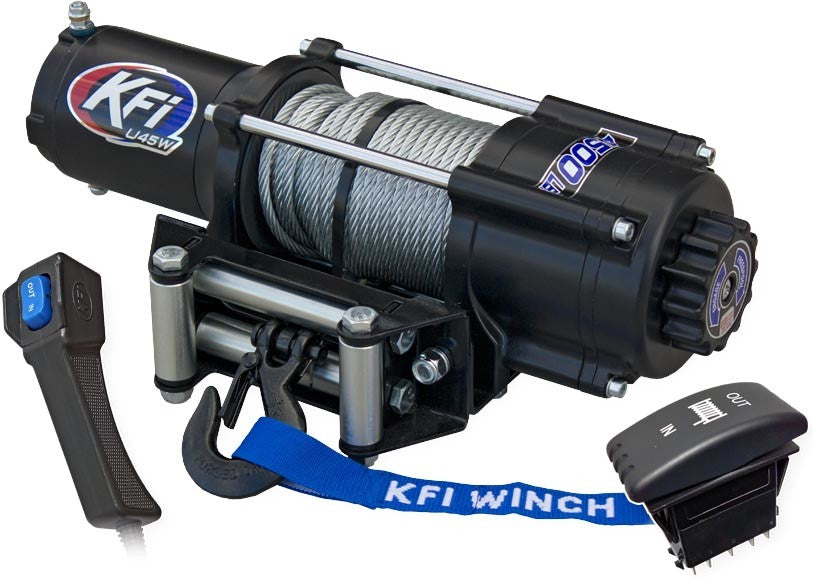

WIDE 4500 LB UTV WINCH

10-0207

$388.00

Save $-388.00
136 in stock

A2500-R2

This 2500lb ATV Series winch features Water Resistant seals to
keep the elements out, a standard 4-hole mounting design and a
heavy duty all metal turn clutch.



  • Rated Line Pull: 2500 lbs.
  • Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch
  • Gear/Transmission: All-metal Planetary Gear Drive
  • Brake: Dynamic and Mechanical
  • Clutch (free spooling): All Metal Cam Activated Freespool
  • Drum Size: 1.5" (D) x 3.15" (L)
  • Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
  • Recommended Battery : 12 Amp/hour minimum
  • Warranty: Limited 1 Year
  • Motor: 12V DC, 1.2 hp permanent magnet.
  • Gear Ratio: 171:1.
  • Cable: 3/16” D x 45.9’ L.
  • Winch Dimensions: 12.67” L x 4.06” D x 4.29” H.
  • Mounting Bolt Pattern: 3.00” x 4.875” (4-Hole).
  • Winch Weight: 25.7 lbs.

A3000

This 3000lb ATV Series winch features Water Resistant seals to
keep the elements out, a standard 4-hole mounting design and a
heavy duty all metal turn clutch.
• Rated Line Pull: 3000 lbs.
• Motor: 12V DC, 1.3 hp permanent magnet.
• Gear Ratio: 171:1.
• Cable: 3/16” D x 45.9’ L.
• Winch Dimensions: 12.67” L x 4.06” D x 4.2” H.
• Mounting Bolt Pattern: 3.00” x 4.875” (4-Hole).
• Winch Weight: 24.8 lbs.
• Hand-held remote included.



R2-45

Rated Line Pull: 4500 lbs.
Motor: 12V DC, 1.7 hp Permanent Magnet
Gear Ratio: 166:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 2" (D) x 3.19" (L)
Cable: 15/64" (D) x 38' (L)
Fairlead: Multi-directional Roller
Control: Deluxe Handlebar Mounted Mini-Rocker Control Switch with
               optional dash mount bracket and a Heavy Duty Corded Remote Switch
Winch Dimensions: 14.6" L x 4.55" D x 5" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)
Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Standard Winch Weight: 36.6 lbs.

Wide Winch Weight: 39 lbs.
